PLNA-100M300M-23-SFF Active

Low Noise Amplifier

Product Feature

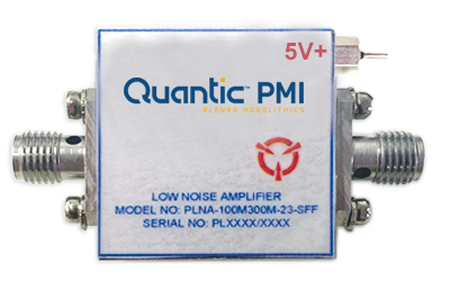

Quantic PMI Model PLNA-100M300M-23-SFF is a low noise amplifier with 23 dB gain and low current draw. This Design operates on a single +5 VDC supply, is well matched for 50 Ohms and has a gain flatness of ±1 dB.  Package size is 1.00” x 1.00” x 0.42” with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 0.3
Frequency Min (GHz): 0.1
Frequency Max (GHz): 0.3
Gain (dB): 23 dB Typ
Gain Flatness: ±1 dB Typ
Noise Figure (dB): 2.2 dB Typ
OP1dB (dBm): 10.7 dBm Typ
VSWR In/Out: In: 1.1:1
Out: 1.3:1
DC Voltage (VDC): +5 VDC
DC Current (mA): 32 mA Typ
Input Power: 13 dBm Max
OIP3: 23.3 dBm Typ
Connectors: SMA Female - removable
Size: 1.00” x 1.00” x 0.42”
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +125°C (Storage)
Humidity: MIL-STD-202,  Method 103B Cond. B
Shock: MIL-STD-202,  Method 213B Cond. B
Vibration: MIL-STD-202,  Method 204D Cond. B
Altitude: MIL-STD-202,  Method 105C Cond. B
Temperature Cycle: MIL-STD-202,  Method 107D Cond. A
