PLDRO-6500-13DBM-SFF Active

Phase Locked Microwave Oscillator

PLDRO-6500-13DBM-SFF
Product Feature

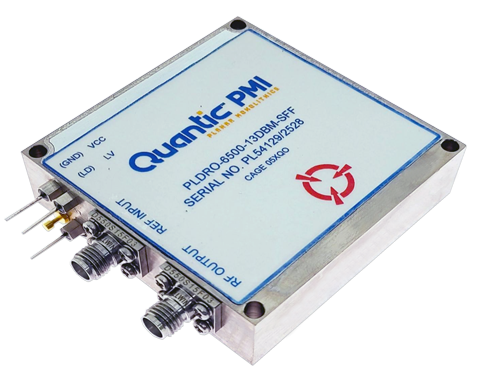

Quantic PMI Model PLDRO-6500-13DBM-SFF is a phase locked microwave oscillator that provides a 13 dBm minimum output at 6.5 GHz. Package size is 2.25” x 2.25” x 0.62” with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Output Frequency - fo (GHz): 6.5
Frequency Stability: Same as Reference
Load VSWR: 1.5:1 Max
Output Power (dBm): 13 dBm Min
Spurious: -75 dBc Max
Phase Noise: -135 dBc/Hz Max at 1 MHz
Harmonics: -20 dBc Max
External Reference: 100 MHz
Reference Input Power: 0 ± 3 dBm
Lock Detector: TTL High = Lock
DC Power: +12 VDC @ 300 mA Max
Reference Phase Noise: -130 dBc/Hz Max @ 100 Hz
-155 dBc/Hz Max @ 1 kHz
-165 dBc/Hz Max @ 10 kHz
-165 dBc/Hz Max @ 100 kHz
Power and Phase Lock Connector: Solder Pins
Connectors: SMA Female

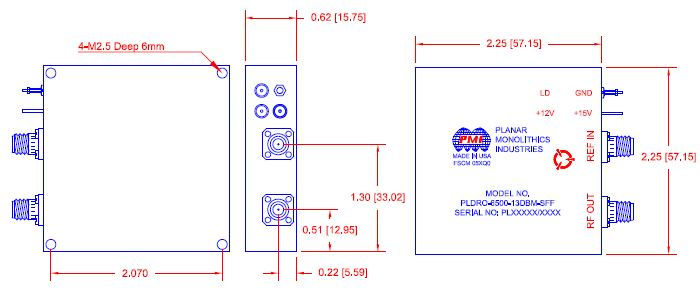

Size: 2.25" x 2.25" x 0.62"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +70 °C
Non-Operating Temperature: -55 °C to +125 °C
Shock: MIL-STD-202, Method 213B Cond. B
Humidity: MIL-STD-202, Method 103B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
