General Parameters: |
Status: | Preliminary |
Output Frequency (fo): | 44.0 GHz |
Frequency Stability: | ±2.5 ppm |
Load VSWR: | 1.5:1 max. |
Output Power: | +14 dBM |
Power Variation over temperature: | ±1.5 dB max. |
Warmup time: | 2.5 minutes max. @ 25°C |
Spurious: | -70 dBc min. in band |
Phase Noise: | -61 dBc/Hz min. @ 100 Hz -92 dBc/Hz min. @ 1 kHz -103 dBc/Hz min. @ 10 kHz -106 dBc/Hz min. @ 100 kHz -121 dBc/Hz min. @ 1000 kHz |
Harmonics: | -20 dBc |
Sub Harmonics: | -50 dBc |
DC Power: | +15 V, 550 mA max. 1.0 Amp max. Surge |
Phase Lock Alarm: | LS-TTL Logic "1" or "0" Lock = Logic "1" Un-Lock = Logic "0" |

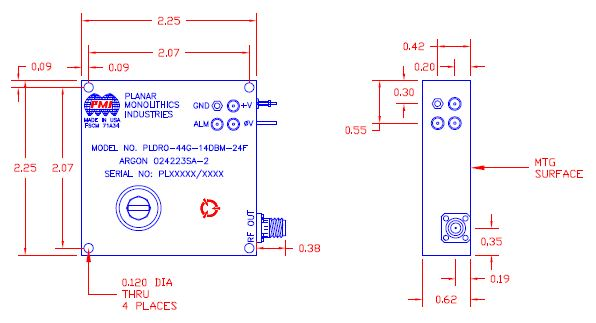

Size: | 2.25" x 2.25" x 0.62" |
Weight: | 8 oz max. |
RF Connector: | 2.4 mm (F) |
Power and Phase Lock Connector: | RFI Solder Pins |
Finish: | Gold Plated over Nickel, Yellow Iridite Chemical Film on Mounting Surface |
Tuner: | Flush Profile |
Pressure: | Operate in Dry Nitrogen @ 100 kPA or Atmospheric Air |
Environmental Ratings: |
Operating Temperature: | -45°C to +85°C |
Non-Operating Temperature: | -55°C to +85°C |
Vibration: | MIL-STD-167-1, Mast Mounted, Frequencies to 25 Hz |
Shock: | Survival: MIL-S-901D, No Breakage Short Duration: 360 g, 1.6 ms, Full Sine Medium Duration: 150 g, 6 ms, Half Sine Long Duration: 130 g, Peak to Peak, 17 ms, Full Sine/30 g, Peak to Peak, 40 ms, Full Sine |
