PLDRO-31D50G-10M-EXT
Preliminary
Phase Locked Dielectric Resonator Oscillator

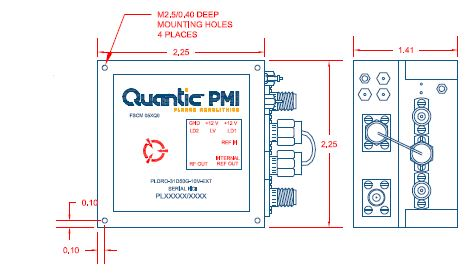

Quantic PMI Model PLDRO-31D50G-10M-EXT is a PLDRO with an output frequency of 31.5 GHz and a minimum output level of 13 dBm. Package size is 2.25” x 2.25” x 1.41” with 2.92mm female (RF OUT) and SMA female (REF IN) connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 31.5 |
|---|
| Frequency Stability: | Same as Reference |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -75 dBc Max |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Sub Harmonics: | -60 dBc Max (0.5 Fo, 1.5 Fo, 2.5 Fo, etc) |
|---|
| Phase Noise (SSB): | -78 dBc/Hz@ 100 Hz Offset
-96 dBc/Hz @ 1 kHz Offset
-98 dBc/Hz@ 10 kHz Offset
-104 dBc/Hz@ 100 kHz Offset
-128 dBc/Hz@ 1 MHz Offset |
|---|
| Lock Detector: | TTL HIGH - LOCK |
|---|
| VSWR: | 1:15 Max |
|---|
| DC Current: | 550 mA Typ |
|---|
| Supply Voltage: | +12 VDC |
|---|
| Connectors: | RF OUT: 2.92mm Female
REF IN: SMA Female
POWER: Through Cap |
|---|
| Size: | 2.25” x 2.25” x 1.41” |
|---|
| Finish: | Nickel Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to 70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +80 °C |
|---|
