| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 30.5 |
|---|
| Frequency Stability: | ±2.5 PPM |
|---|
| Load VSWR: | 1.5:1 Max |
|---|
| Output Power (dBm): | 14 dBm |
|---|
| Power Variation over temperature: | ±1.5 dB Max |
|---|
| Warmup time: | 2.5 minutes Max @ 25 ºC |
|---|
| Spurious: | -70 dBc Min in band |
|---|
| Phase Noise: | -66 dBc/Hz Min @ 100 Hz,
-96 dBc/Hz Min @ 1 kHz,
-107 dBc/Hz Min @ 10 kHz,
-110 dBc/Hz min @ 100 kHz,
-125 dBc/Hz Min @ 1000 kHz |
|---|
| Harmonics: | -20 dBc |
|---|
| Sub Harmonics: | -50 dBc |
|---|
| Phase Lock Alarm: | LS-TTL Logic "1" or "0"
Lock = Logic "1",
Un-Lock = Logic "0" |
|---|
| Tuner: | Flush Profile |
|---|
| Pressure: | Operate in dry nitrogen @ 100 kPA or atmospheric air |
|---|
| Short Duration: | 360 g, 1.6 ms full sine |
|---|
| Medium Duration: | 150 g, 6 ms half sine |
|---|
| Long Duration: | 130 g Peak to Peak, 17 ms, full sine 30 g. Peak to Peak, 40 ms, full sine |
|---|
| DC Power: | +15 VDC, 550 mA Max, 1 A Max surge |
|---|
| Power and Phase Lock Connector: | RFI Solder Pin |
|---|
| Connectors: | 2.92mm Female |
|---|

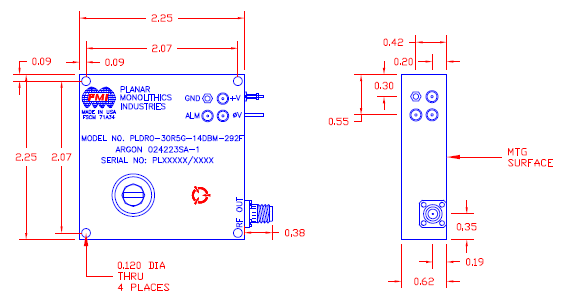

| Size: | 2.25" x 2.25" x 0.62" |
|---|
| Finish: | Gold Plated over nicel, Yellow Iridite Chemical film on mounting surface |
|---|
| Weight: | 8 oz Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -45 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Vibration: | MIL-STD-167-1, mast mounted, frequency to 25 Hz |
|---|
| Shock: | MIL-S-901D, no breakage |
|---|
