| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 24 |
|---|
| Frequency Stability: | ±2.5 ppm |
|---|
| Load VSWR: | 1.5:1 Max |
|---|
| Output Power (dBm): | 14 dBm |
|---|
| Power Variation over temperature: | ±1.5 dB Max |
|---|
| Warmup time: | 2.5 min Max @ +25 °C |
|---|
| Spurious: | -70 dBc Min in Band |
|---|
| Phase Noise: | -66 dBc/Hz Min @ 100 Hz
-96 dBc/Hz Min @ 1 kHz
-98 dBc/Hz Min @ 10 kHz
-98 dBc/Hz Min @ 100 kHz
-125 dBc/Hz Min @ 1 MHz |
|---|
| Harmonics: | -20 dBc |
|---|
| Sub Harmonics: | -50 dBc |
|---|
| Phase Lock Alarm: | LS-TTL Logic "1" or "0"
Lock=Logic "1"
Unlock=Logic "0" |
|---|
| Pressure: | Operate in Dry Nitrogen 100 kPA or Atmospheric Air |
|---|
| Medium Duration: | 150 g, 6 ms, Half Size |
|---|
| Long Duration: | 130 g, Peak to Peak, 17 ms, Full Size
30 g, Peak to Peak, 40 ms, Full Size |
|---|
| DC Power: | +15 VDC , 550 mA Max
1.0 Amp Max Surge |
|---|
| Power and Phase Lock Connector: | RFI Solder Pins |
|---|
| Connectors: | 2.92mm Female |
|---|

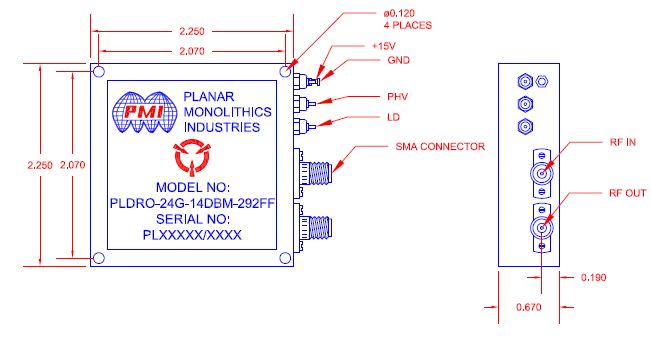

| Size: | 2.25" x 2.25" x 0.62" |
|---|
| Finish: | Gold Plated over Nickel |
|---|
| Weight: | 8 oz Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -45 °C to +85 °C |
|---|
| Non-Operating Temperature: | -55 °C to +85 °C |
|---|
| Vibration: | MIL-STD-167-1, Mast Mounted, Frequencies to 25 Hz |
|---|
| Shock: | MIL-S-901D, No Breakage (Survival) |
|---|
| Shock Duration: | 360 g, 1.6 ms, Full Size |
|---|
