PLDRO-15000-13DBM-SFF
Preliminary
Phase Locked Microwave Oscillator
Quantic PMI Model PLDRO-15000-13DBM-SFF is a phase locked microwave oscillator that provides a 13 dBm minimum output at 15 GHz. Package size is 2.25” x 2.25” x 0.62” with SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 15 |
|---|
| Frequency Stability: | Same as Refrence |
|---|
| Load VSWR: | 1.5:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -60 dBc Max (FO ±100 KHz),
-75 dBc Max (FO >100 KHz) |
|---|
| Phase Noise: | -130 dBc/Hz Max at 1 MHz |
|---|
| Harmonics: | -20 dBc Max |
|---|
| External Reference: | 100 MHz |
|---|
| Reference Input Power: | 0 ± 3 dBm |
|---|
| Lock Detector: | TTL High In-Lock |
|---|
| DC Power: | +12 VDC, 300 mA Max |
|---|
| Power and Phase Lock Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|

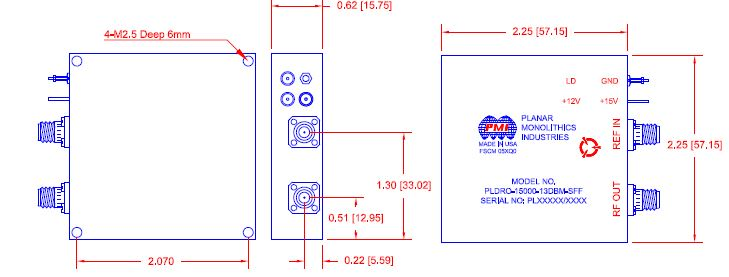

| Size: | 2.25” x 2.25” x 0.62" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +125 °C |
|---|
