PLDRO-14D275-25M-EXT-ROHS
Preliminary

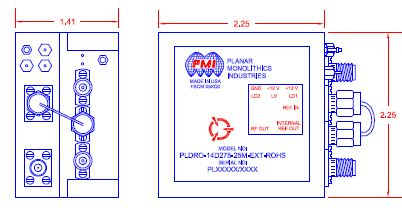

PMI Model PLDRO-14D275-25M-EXT-ROHS is a PLDRO with an output frequency of 14.275 GHz. This model is outfitted with SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency (fo): | 14.275 GHz |
|---|
| Output Power: | +13 to +15 dBm |
|---|
| Spurious: | -80 dBc max. |
|---|
| Harmonics: | -20 dBc Max (Output) |
|---|
| DC Power: | +12 +/- 0.5 VDC, 450 mA Max (500mA Max @ Cold Temp) |
|---|
| RF Connector: | SMA Female |
|---|
| Reference Input Power: | +7 ± 3 dBc |
|---|
| Reference Frequency: | 25 MHz (External) |
|---|
| VSWR: | 3.0:1 Min |
|---|
| Input Frequency: | 25 MHz, ONLY AVAILABLE FREQUENCY |
|---|
| Lock Indicator: | TTL HIGH FOR IN-LOCK TTL LOW FOR OUT-OF-LOCK |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40° to 75°C |
|---|
