| General Parameters: |
|---|
| Status: | Active |
|---|
| Output Frequency - fo (GHz): | 14.15 |
|---|
| Output Power (dBm): | 13 to 15 dBm into 50 Ohm over the operational temperature |
|---|
| Phase Noise: | Phase noise between two specified frequency points shall not be higher than the piecewise straight line drawn between the two points on a dB vs. log frequency plot. Phase noise shall be in compliance over the specified Operational Temperature at mounting plate. |
|---|
| Harmonics: | <-20 dBc |
|---|
| Phase Lock Alarm: | TTL High for in-lock
TTL Low for out-of-lock |
|---|
| External Reference: | 25 MHz |
|---|
| Reference Input Power: | 10 ± 3 dBm |
|---|
| Reference Phase Noise (SSB): | < -110 dBc/Hz @ 10 Hz
< -137 dBc/Hz @ 100 Hz
< -156 dBc/Hz @ 1 kHz
< -165 dBc/Hz @ 10 kHz
< -168 dBc/Hz @ 100 kHz |
|---|
| Phase Noise (SSB): | < -49 dBc/Hz @ 10 Hz
< -79 dBc/Hz @ 100 Hz
< -89 dBc/Hz @ 1 kHz
< -102 dBc/Hz @ 10 kHz
< -111 dBc/Hz @ 100 kHz
< -134 dBc/Hz @ 1 MHz
<- 147 dBc/Hz @ > 10 MHz |
|---|
| DC Power: | +12 ± 0.5 VDC, 500 mA (Max) |
|---|
| Output Discrete Spurious: | -76 dBc Max @ ± (10 MHz to 2 GHz) away from the carrier |
|---|
| Phase Voltage Monitor Output: | 0 to +12 VDC |
|---|
| External Reference Input: | SMA female, passivated stainless steel body |
|---|
| Ground: | Solder Pin |
|---|
| No lock breaking pulling VSWR: | 3.0:1 Min |
|---|
| Reference Input Spurious: | < -80 dBc @ greater than 1 MHz away from the carrier |
|---|
| Power and Phase Lock Connector: | Solder Pin |
|---|
| Connectors: | SMA Female, passivated stainless steel body |
|---|

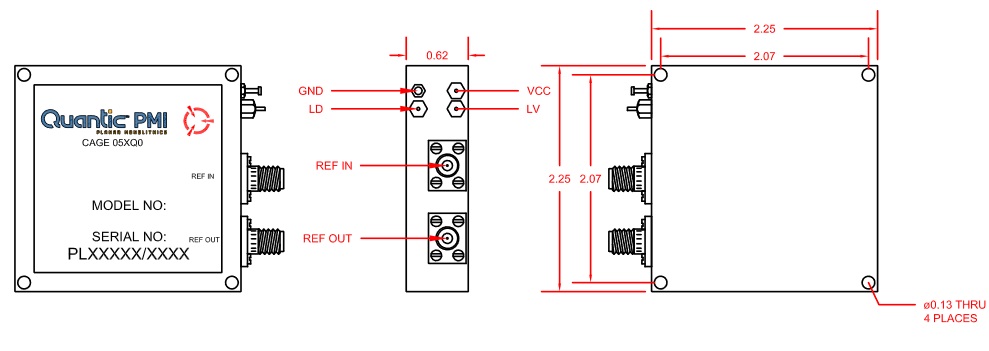

| Size: | 2.25” x 2.25” x 0.62”
(57.2mm x 57.2mm x 15.7mm) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +75 °C (baseplate) |
|---|
