PLDRO-13D775-25M-EXT-ROHS
Preliminary
Phase Locked Oscillator (PLDRO)

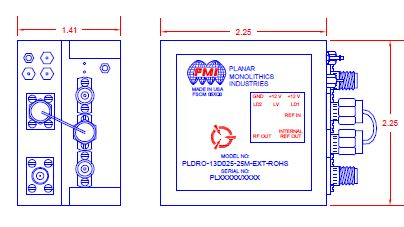

Quantic PMI Model PLDRO-13D775-25M-EXT-ROHS is a PLDRO with an output frequency of 13.775 GHz with an output power of 13 to 15 dBm. Package size is 2.25” x 2.25” x 1.41” with SMA female connectors. ROHS Compliant.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 13.775 |
|---|
| Output Power (dBm): | 13 to 15 dBm |
|---|
| Spurious: | -80 dBc Max |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Reference Input Power: | 7 ± 3 dBc |
|---|
| Reference Frequency: | 25 MHz |
|---|
| VSWR: | 3.0:1 Min |
|---|
| DC Supply: | +12 ± 0.5 VDC, 450 mA Max |
|---|
| DC Power: | +12 ± 0.5 VDC, 450 mA Max |
|---|
| Lock Indicator: | TTL HIGH for IN-LOCK
TTL LOW for OUT-OF-LOCK |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.25” x 2.25” x 1.41” |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ˚C to +70 ˚C |
|---|
