PLDRO-12000-13DBM-SFF Active

Phase Locked Microwave Oscillator

PLDRO-12000-13DBM-SFF
Product Feature

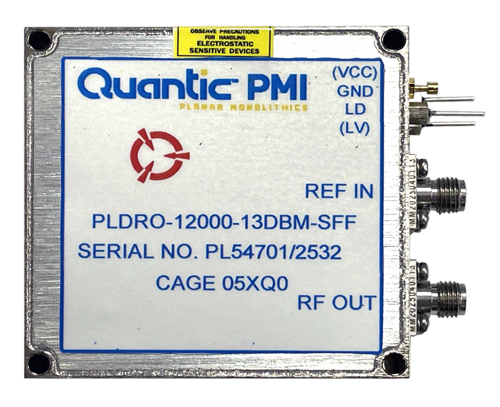

Quantic PMI Model PLDRO-12000-13DBM-SFF is a phase locked microwave oscillator that provides a 13 dBm minimum output at 12 GHz. Package size is 2.25” x 2.25” x 0.62” with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Output Frequency - fo (GHz): 12
Frequency Stability: Same as Reference
Load VSWR: 1.5:1 Max
Output Power (dBm): 13 dBm Min
Spurious: -60 dBc Max (FO ±100 KHz),
-75 dBc Max (F0 >100 KHz)
Phase Noise: -130 dBc/Hz Max at 1 MHz
Harmonics: -20 dBc Max
External Reference: 100 MHz
Reference Input Power: 0 ± 3 dBm
Lock Detector: TTL High In-Lock
DC Power: +12 VDC, 300 mA Max
Power and Phase Lock Connector: Solder Pins
Connectors: SMA Female
Size: 2.25" x 2.25" x 0.62"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +70 °C
Non-Operating Temperature: -55 °C to +125 °C
