PLDRO-10D88G-10M-EXT-SMA
Preliminary
Phase Locked Dielectric Resonator Oscillator (PLDRO)

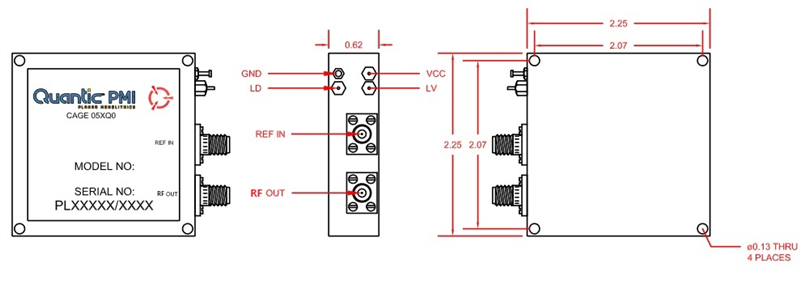

Quantic PMI Model PLDRO-10D88G-10M-EXT-SMA is a PLDRO with an output frequency of 10.88 GHz. Package size is 2.25” x 2.25” x 0.62” with SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 10.88 |
|---|
| Load VSWR: | 1.5:1 Max |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -70 dBc Max |
|---|
| Phase Noise: | -110 dBc/Hz Max @ 1 kHz
-118 dBc/Hz Max @ 10 kHz
-120 dBc/Hz Max @ 100 kHz
-140 dBc/Hz Max @ 1 MHz |
|---|
| Harmonics: | -20 dBc Max |
|---|
| External Reference: | 10 MHz |
|---|
| Lock Detector: | TTL High = Lock |
|---|
| Input Level: | -3 to +3 dBm |
|---|
| DC Current: | 550 mA Max |
|---|
| Supply Voltage: | +15 VDC |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.25" x 2.25" x 0.62" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ˚C to +70 ˚C |
|---|
| Non-Operating Temperature: | -50 ˚C to +80 ˚C |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
