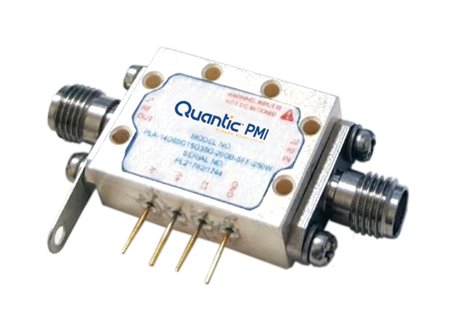

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 14.65 to 15.35 |
|---|
| Frequency Min (GHz): | 14.65 |
|---|
| Frequency Max (GHz): | 15.35 |
|---|
| Insertion Loss (dB): | 3.59 Max |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| Power Handling: | 125 W Max @ 0 dB,
20 dB attenuation @ 10% duty cycle |
|---|
| Average Power: | 12.5 W Max @ 0 dB,
20 dB attenuation @ 10% duty cycle |
|---|
| Input Power: | 125 Watts Peak having a pulse width of 40 µs and an average power of 12.5 Watts |
|---|
| Attenuation: | Logic TTL |
|---|
| Attenuation Flatness: | ±1 dB Max |
|---|
| Attenuation Accuracy: | ±1 dB Max |
|---|
| RF Leakage (dBm): | +20 Max |
|---|
| Switching Speed: | 90 ns @ 50% TTL to 10% RF Voltage,
90 ns @ 50% TTL to 90% RF Voltage |
|---|
| Pulse width: | 40 µs Typ |
|---|
| Control Logic: | TTL Compatible |
|---|
| Phase Matching: | 15° Max (Unit to Unit) |
|---|
| P1dB Limiting Threshold (dBm): | +5 Min |
|---|
| DC Consumption: | 150 mA Max each for +5 V & -15 V |
|---|
| Connectors In/Out: | Removable SMA Female
(J2 - RF Input & J1 - RF Output) |
|---|
| Finish: | Silver Plating |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-20F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
