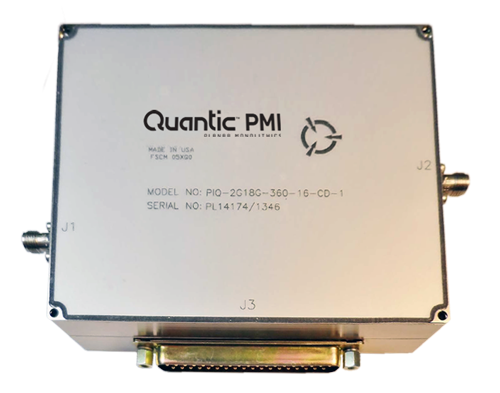

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 2.0 GHz |
|---|
| Frequency Max: | 18.0 GHz |
|---|
| Insertion Loss: | 16.0 dB Max |
|---|
| Phase Shift Range: | 360° |
|---|
| Size: | 4.25" X 3.50" X 1.00" |
|---|
| Attenuation Dynamic Range: | 16 dB & 360 |
|---|
| VSWR: | 2.2:1 Max. |
|---|
| Phase vs Frequency: | ±20.0° Typ. |
|---|
| Control Logic: | 2X12 BITs (l&Q), TTL Compatible |
|---|
| Control Slopes: | Linear |
|---|
| Switching Speed: | 500 ns Max. |
|---|
| Power Supply: | +/-12V to +/-15V |
|---|
| Attenuation vs Frequency: | ±3.5dB Typ. |
|---|
| RF Connectors: | SMA Female |
|---|
| Finish: | Nickel Plated |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -10 ºC to +60 ºC Operating, -65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond A |
|---|
