PIA-FLA-2G18G-4-8-SFF Preliminary

Additional Documents

General Parameters:
Status:	Preliminary
Product Description:	Quantic PMI Model PIA-FLA-2G18G-4-8-SFF is an integrated assembly consisting of four identical channels. Each channel features an input 2 to 18 GHz high pass filter, limiter, low noise amplifier, and power divider. The gain is 20 dB Min with a noise figure of 5 dB Max (@ room temp), and OP1dB of +10 dBm Min. This module is designed to survive input power levels of 1 watt CW and 10 watts peak with 1 µs pulse width and 1 kHz PRF. Housing size is 2.5" x 4.5" x 0.5" with SMA female connectors.
Connectors:	SMA female

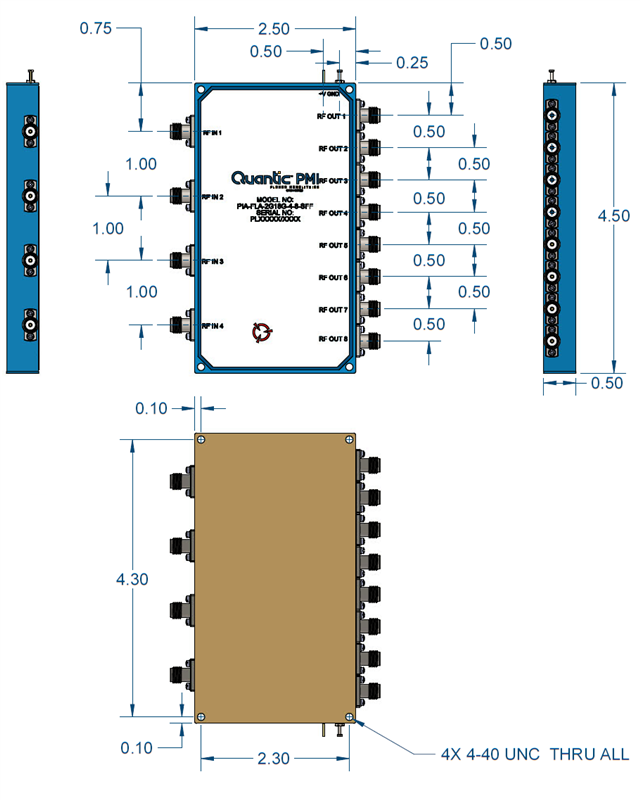

Size:	2.5" x 4.5" x 0.5"
Finish:	Painted Blue (Mounting surface unpainted and gold plated)
Frequency Range:	2 to 18 GHz
Gain:	20 dB Min
Filter Rejection:	15 dB @ 1700 MHz Typ 35 dB @ 1500 MHz Typ 80 dB @ 870 MHz Typ
DC Power:	1.7 A IQ @ +12 to +15 VDC Typ
Input Power:	1 W CW, 10 W Peak (1 us PW, 1 kHz PRF)
Gain Flatness:	±1.5 dB Typ
OIP3:	+20 dBm Min
OP1dB:	+10 dBm Min
Channel - Channel Isolation:	60 dBc Min
Noise Figure:	5 dB Max @ Room Temp
VSWR:	2:1 Max
Environmental Ratings:
Temperature:	-55 °C to +85 °C (Operating) -65 °C to +125 °C (Storage)
Humidity:	MIL-STD-202, METHOD 103B COND. B
Shock:	MIL-STD-202, METHOD 213B COND. B
Altitude:	MIL-STD-202, METHOD 105C COND. B
Temperature Cycle:	MIL-STD-202, METHOD 107D COND. A
Vibration:	MIL-STD-202, METHOD 204D COND. B
