PIA-5087D16-CD-1-EXT Preliminary

Phase Locked Dielectric Resonator Oscillator (PLDRO)

PIA-5087D16-CD-1-EXT
Product Feature

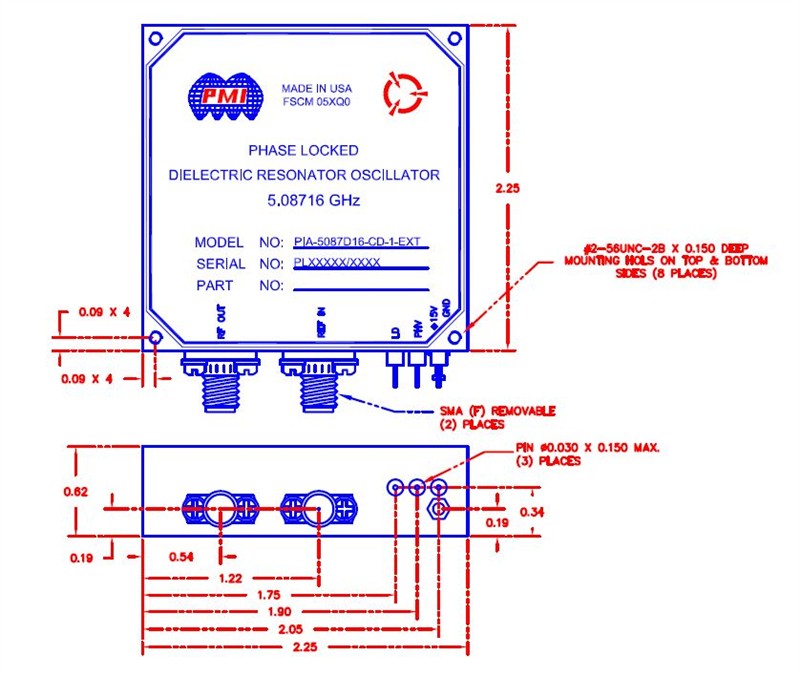

Quantic PMI Model PIA-5087D16-CD-1-EXT is a Phase Locked, Dielectric Resonator Oscillator with Internal Reference (PLDRO) covering the frequency of 5.08716 GHz with an output power of 13 dBm. This model has SMA female connectors and measures 2.25" x 2.25" x 0.62".

Product Specifications

General Parameters:
Status: Preliminary
Output Frequency - fo (GHz): 5.08716
Frequency Stability: Same as reference
Load VSWR: 1.5:1
Output Power (dBm): 13 dBm Min
Spurious: <-70 dBc
Harmonics: <-20 dBc
External Reference: 130.44 MHz (0 ± 3 dBm)
Supply Voltage: +15 VDC
Connectors: SMA Female
Size: 2.25" x 2.25" x 0.62"
Finish: Nickel
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +75 °C
Non-Operating Temperature: -54 °C to +80 °C
Shock: MIL-STD-202F, METHOD 213B COND B.
Humidity: MIL-STD-202F, METHOD 103B COND B.
Altitude: MIL-STD-202F, METHOD 105C COND B.
Temperature Cycle: MIL-STD-202F, METHOD 107D COND A.
