PIA-25-CD-2-EXT
Preliminary
Phase Locked, Dielectric Resonator Oscillator

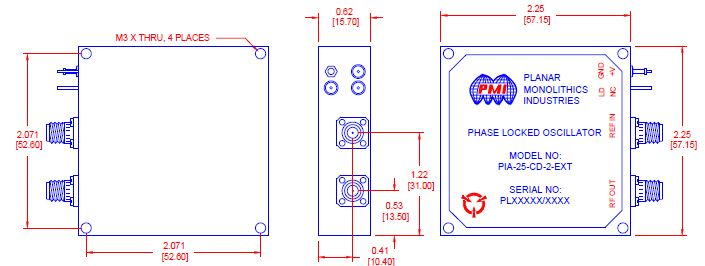

Quantic PMI Model PIA-25-CD-2-EXT is a Phase Locked, Dielectric Resonator Oscillator with External Reference (PLDRO) covering the frequency of 25 GHz with an output power of 13 dBm Min. Package size is 2.25” x 2.25” x 0.63” with SMA female (REF IN) and 2.92mm female (RF IN) connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 25 |
|---|
| Load VSWR: | 1.4:1 Typ |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | <-60 dBc |
|---|
| Phase Noise: | -75 dBc/Hz Min @ 100 Hz
-95 dBc/Hz Min @ 1 kHz
-100 dBc/Hz Min @ 10 kHz
-105 dBc/Hz Min @ 100 kHz
-130 dBc/Hz Min @ 1 MHz |
|---|
| Harmonics: | <-25 dBc |
|---|
| Connectors: | REF IN: SMA Female
RF OUT: 2.92mm Female |
|---|
| Size: | 2.25” x 2.25” x 0.63" |
|---|
| Finish: | Nickel |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -25 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +125 °C |
|---|
