PIA-25-CD-1-EXT Active

Phase Locked, Dielectric Resonator Oscillator

Buy Now
PIA-25-CD-1-EXT
Product Feature
Additional Documents

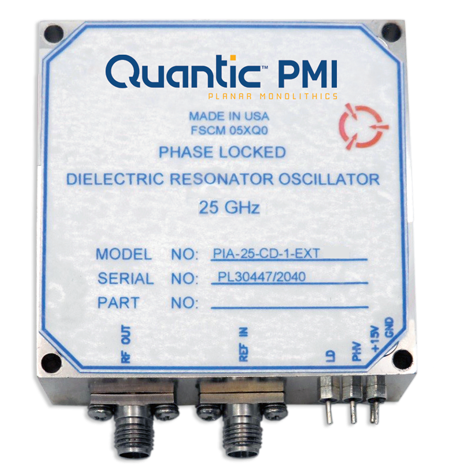

Quantic PMI Model PIA-25-CD-1-EXT is a Phase Locked, Dielectric Resonator Oscillator with External Reference (PLDRO) covering the frequency of 25 GHz.  Package size is 2.25" x 2.25" x 0.52" with SMA Female connectors.

Product Specifications

General Parameters:
Status: Active
Output Frequency - fo (GHz): 25
Frequency Stability: ±3 ppm
Load VSWR: 1.4:1 Typ
Output Power (dBm): 13 dBm Min
Spurious: <-60 dBc
Phase Noise: 1 Hz: <-34 dBc/Hz Typ
10 Hz: <-100 dBc/Hz Typ
100 Hz: <-75 dBc/Hz Typ
1 KHz: <-95 dBc/Hz Typ
10 KHz: <-100 dBc/Hz Typ
100 KHz: <105 dBc/Hz Typ
1 MHz: <130 dBc/Hz Typ
Harmonics: <-25 dBc
Connectors: SMA Female
Size: 2.25" x 2.25" x 0.52"
Finish: Nickel
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -25 °C to +70 °C
Non-Operating Temperature: -55 °C to +125 °C
Shock: MIL-STD-202F, METHOD 213B COND B
Humidity: MIL-STD-202F, METHOD 103B COND B
Altitude: MIL -STD-202F, METHOD 105C COND B
Temperature Cycle: MIL-STD-202F, METHOD 107D COND A
