PIA-12D5G-CD-1
Preliminary
Phase Locked, Dielectric Resonator Oscillator

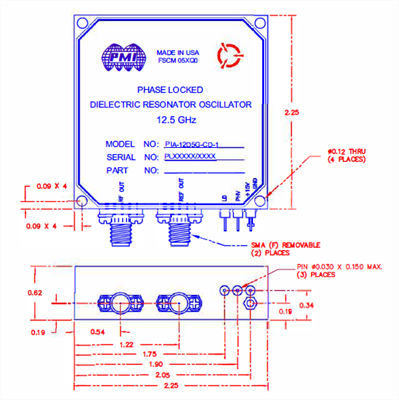

Quantic PMI Model PIA-12D5G-CD-1 is a Phase Locked, Dielectric Resonator Oscillator with Internal Reference (PLDRO) covering the frequency of 12.5 GHz with an output power of 13 dBm. Package size is 2.25” x 2.25” x 0.62” with SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 12.5 |
|---|
| Frequency Stability: | ±3 ppm |
|---|
| Load VSWR: | 1.4:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | <-80 dBc |
|---|
| Phase Noise: | @ Offset 1 Hz: <-34 dBc/Hz
@ Offset 10 Hz: <-65 dBc/Hz
@ Offset 100 Hz: <-85 dBc/Hz
@ Offset 1 KHz: <-108 dBc/Hz
@ Offset 10 KHz: <-115 dBc/Hz
@ Offset 100 KHz: 120 dBc/Hz
@ Offset 1 MHz: 140 dBc/Hz |
|---|
| Harmonics: | <-25 dBc |
|---|
| Alarm: | TTL Volts |
|---|
| Power Output: | 13 dBm Min |
|---|
| DC Supply: | +15 VDC |
|---|
| Internal Reference: | 100 MHz |
|---|
| DC Current: | 300 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.25” x 2.25” x 0.62” |
|---|
| Finish: | Nickel |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -25 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +125 °C |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
