PFS-819-10K-EXT10M-5V-SFF PreliMinary

Frequency Synthesizer

PFS-819-10K-EXT10M-5V-SFF
Product Feature

Quantic PMI Model PFS-819-10K-EXT10M-5V-SFF is a frequency synthesizer covering the RF range of 8 to 19 GHz. With a nominal output power of 10 dBm. This unit features a 10 kHz step size and utilizes a 10 MHz external reference. The mechanical size is 4.5" x 2.5" x 0.6" with SMA female connectors.


Product Specifications

General Parameters:
Status: PreliMinary
Frequency Range (GHz): 8 to 19
Frequency Min (GHz): 8
Frequency Max (GHz): 19
Frequency Step Size, Nominal (LSB): 10 kHz
Power Output Level (dBm): 10 dBm ± 3 dB, 50 Ohm
Spurious Output: -55 dBc Max
Harmonics: -15 dBc Max
Reference: External 10 MHz, 0 dBm ± 3 dB, 50 Ohm
Modulation Input Connector: SMA Female
Phase Nosie: 1 kHz Offset = -80 dBc/Hz Max
10 kHz Offset = -84 dBc/Hz Max
100 kHz Offset = -84 dBc/Hz Max
1 MHz Offset = -94 dBc/Hz Max
10 MHz Offset = -121 dBc/Hz Max
Programming: Serial Clock, Data, Enable
2.5 V Logic, VIH (Min) = 2.0 V. VIL (Max) = 0.5 V
Power Connector: 21 pin Micro-D Male
Control Connector: 21 pin Micro-D Male
Output Connector: SMA Female

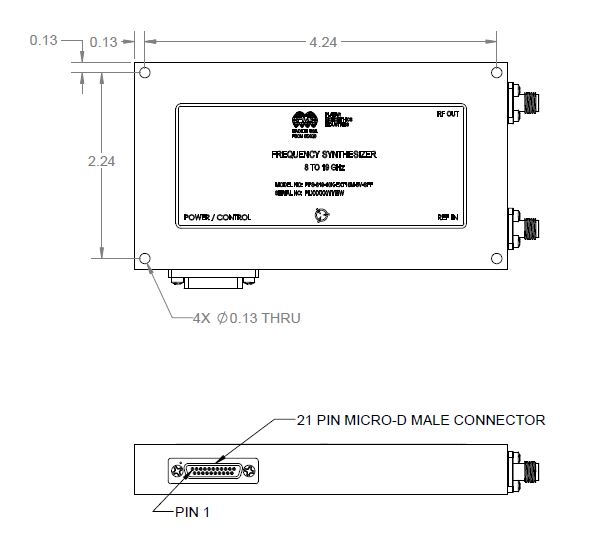

Size: 4.5" X 2.5" X 0.6"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
