PFS-6G9G-CD-NM Active

High Speed Frequency Synthesizer

PFS-6G9G-CD-NM
Product Feature
Additional Documents

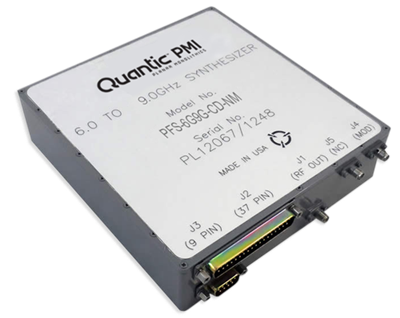

Quantic PMI Model PFS-6G9G-CD-NM is a high-speed frequency synthesizer that operates over the frequency range of 6 to 9 GHz with 100 kHz steps and an output power of 10 dBm minimum. The unit is accurate to within ±1 MHz and settles within 1 µs maximum. This model features low SSB Noise, a low spurious output of -50 dBc and harmonics are kept below -30 dBc. Package size measures 6.48" x 6.23" x 1.6" with a 9 Pin Sub-D male for power, a 37 Pin Sub-D male for control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6 to 9
Frequency Min (GHz): 6
Frequency Max (GHz): 9
Frequency Step Size, Nominal (LSB): 100 kHz
Power Output Level (dBm): 10 dBm Min
Power Variation Over Temperature: 5 dB P-P (±2.5 dB) Max
Frequency Accuracy: ±1 MHz Max
Frequency Aging: ±2 PPM / Year
Settling Time to 1 MHz: ≤1 µs Typ
Tuning Speed: ≤1 µs Typ
Tuning Control: Binary, TTL 16 Bits Min
SSB Noise @ 1 KHz Offset: -78 dBc / Hz
SSB Noise @ 100 KHz Offset: -96 dBc / Hz
SSB Noise @ 10 MHz Offset: -100 dBc / Hz
Spurious Output: -50 dBc Typ
Harmonics: -30 dBc Max
Sub-Harmonics: -55 dBc Max
Reference: Internal Reference (Output J5)
Power Supply: +12 VDC @ 2.5 A Max,
-12 VDC @ 0.6 A Max,
+5 VDC @ 4 A Max,
-5 VDC @ 2 A Max
Modulation Input Connector: SMA Female
Power Connector: 9 Pin Sub-D Male
Control Connector: 37 Pin Sub-D Male
Output Connector: SMA Female
Size: 6.23" x 6.48" x 1.6"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -20 ºC to +70 ºC
