PFS-618-CD-3 Active

Frequency Synthesizer

PFS-618-CD-3
Product Feature

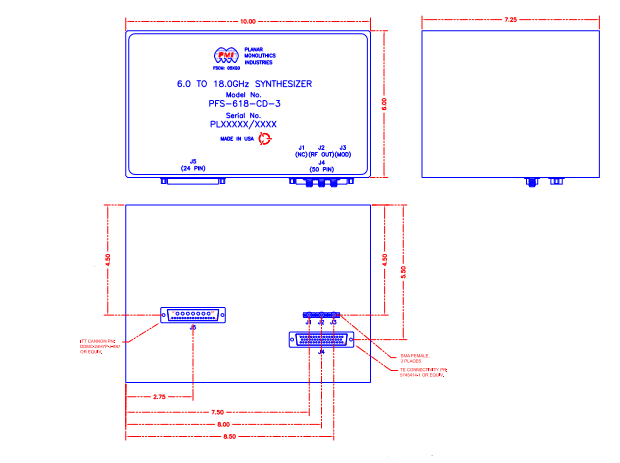

Quantic PMI Model PFS-618-CD-3 frequency synthesizer that operates over the frequency range of 6 to 18 GHz. This model features high speed, high accuracy and low phase noise. Housing measures 10.0" x 6.0" x 7.25" with a 24 Pin Sub-D male for power, a 50 Pin Sub-D male for control and SMA female connectors.


Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6 to 18
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Frequency Step Size, Nominal (LSB): 100 kHz
Power Output Level (dBm): 10 dBm Min
Power Variation Over Temperature: 5 dB P-P (±2.5 dB) Max
Frequency Accuracy: ±1 MHz Max
Frequency Aging: ±2 PPM / Year
Settling Time to 1 MHz: ≤1 µs Typ
Tuning Speed: ≤1 µs Typ
Tuning Control: Binary, TTL 16 Bits Min (Planned 17 Bits Parallel)
SSB Noise @ 1 KHz Offset: -78 dBc / Hz
SSB Noise @ 100 KHz Offset: -96 dBc / Hz
SSB Noise @ 10 MHz Offset: -100 dBc / Hz
Spurious Output: -50 dBc Typ
Harmonics: -30 dBc Max
Sub-Harmonics: -55 dBc Max
Reference: Internal Reference
Modulation Bandwidth: DC to 10 MHz
Frequency Deviation: ±400 MHz Min, ±4 V
Sensitivity: 1.1:1
Power Supply: +12 VDC @ 2.5 A Max,
-12 VDC @ 0.6 A Max,
+5 VDC @ 4 A Max,
-5 VDC @ 2 A Max
Modulation Input Connector: SMA Female
Control: Analog
Power Connector: 24 Pin Sub-D Male
Control Connector: 50 Pin Sub-D Male
Output Connector: SMA Female
Size: 10.0" x 6.0" x 7.25"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -20ºC to +70 ºC
