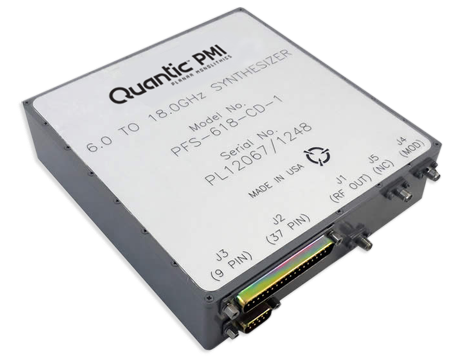

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 6 to 18 |
|---|
| Frequency Min (GHz): | 6 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Frequency Step Size, Nominal (LSB): | 100 kHz |
|---|
| Power Output Level (dBm): | 10 dBm Min |
|---|
| Power Variation Over Temperature: | 5 dB P-P (±2.5 dB) Max - Measured ±2.38 dB |
|---|
| Frequency Accuracy: | ±1 MHz Max - Measured 0.38 MHz |
|---|
| Frequency Aging: | ±2 PPM / Year |
|---|
| Settling Time to 1 MHz: | 1 µs |
|---|
| Tuning Speed: | 1 µs |
|---|
| Tuning Control: | Binary, TTL 17 Bits (Parallel) |
|---|
| SSB Noise @ 1 KHz Offset: | -78 dBc/Hz - Measured -79.79 dBc/Hz@1 kHz |
|---|
| SSB Noise @ 100 KHz Offset: | -96 dBc/Hz - Measured -101.48 dBc/Hz @ 100 kHz |
|---|
| SSB Noise @ 10 MHz Offset: | -100 dBc/Hz - Measured -109.15 dBc/Hz @ 10 MHz |
|---|
| Spurious Output: | -55 dBc Max |
|---|
| Harmonics: | -30 dBc Max - Measured -34.24 dBc |
|---|
| Sub-Harmonics: | -55 dBc Max |
|---|
| Reference: | Internal Reference |
|---|
| Modulation Bandwidth: | DC to 10 MHz |
|---|
| Frequency Deviation: | ±400 MHz Min, 100 MHz / Volt |
|---|
| Sensitivity: | 1.1 : 1 - Measured 1:1 |
|---|
| Power Supply: | +12 V @ 2.5 A Max - Measured 1.3 A,
-12 V @ 0.6 A Max - Measured 0.07 A,
+5 V @ 4 A Max - Measured 1.52 A,
-5 V @ 2 A Max - Measured 0.03 A |
|---|
| Modulation Input Connector: | SMA Female |
|---|
| Control: | Analog |
|---|
| Power Connector: | 9 Pin Sub-D Male |
|---|
| Control Connector: | 37 Pin Sub-D Male |
|---|
| Output Connector: | SMA Female |
|---|
| Size: | 6.48" x 6.23" x 1.6" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -20 ºC to +70 ºC |
|---|
