PFS-1G20G-SPI PreliMinary

Frequency Synthesizer

PFS-1G20G-SPI
Product Feature

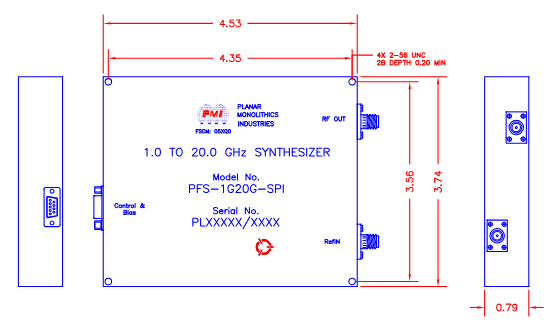

Quantic PMI Model PFS-1G20G-SPI is a frequency synthesizer that operates over the 1 to 20 GHz frequency range using SPI input controls and a 10 MHz reference signal. This unit features high speed, high accuracy and low phase noise.  Housing measures 4.53" x 3.74" x 0.79" with a standard RS232 9-Pin female Micro-D connector and SMA female connectors.

100 MHz reference signal version available upon request.

Product Specifications

General Parameters:
Status: PreliMinary
Frequency Range (GHz): 1 to 20
Frequency Min (GHz): 1
Frequency Max (GHz): 20
Frequency Step Size, Nominal (LSB): 0.2 Hz
Power Output Level (dBm): 10 dBm Min
Frequency Accuracy: ±2E-7 (or same as external ref)
Tuning Speed: 2.2 ms Typ
Phase Noise: See Product Feature
Spurious Output: -65 dBc Typ
-60 dBc Max
Harmonics: -5 dBc Max
Reference: 10 MHz @ 5 ± 3 dBm
Power Supply: +12 VDC @ 1.4 A (Warm-Up)
+12 VDC @ 1.2 A (Stable)
Control: SPI
Output Connector: SMA Female
Size: 4.53" X 3.74" X 0.79"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +70 °C
Storage Temperature: -55 to +85°C
