PFA-DC3G-20-2W-BNCMF Preliminary

Fixed Attenuator

Quantic PMI Model PFA-DC3G-20-2W-BNCMF is a Fixed, Attenuator operating over the DC to 3 GHz frequency range that offers 20 ± 0.5 dB of attenuation with an input power of 2 W maximum. Package size is 1.8" x Ø0.58" with BNC connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): DC To 3
Frequency Min (GHz): DC
Frequency Max (GHz): 3
Attenuation Value (dB): 20 dB
Attenuation Accuracy (dB): ±0.5 dB
Impedance (Ohms): 50
VSWR: 1.2:1 Typ (DC to 2 GHz),
1.3:1 Typ (2 to 3 GHz)
Input Power: 2 W Max
Connectors: BNC Male / Female

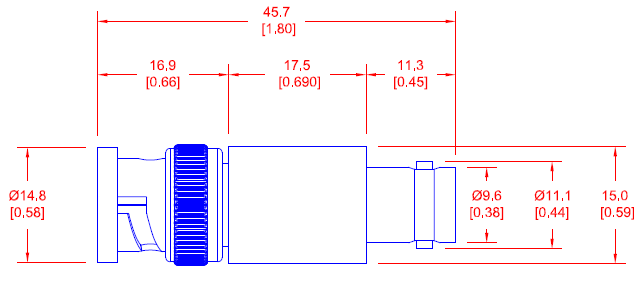

Size: 1.8" x Ø0.58",
45.72 mm x Ø14.99 mm
Environmental Ratings:
Temperature: -20 ºC to +85 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
