PFA-DC18G-10-2W-SMF Active

Fixed, Bidirectional Attenuator

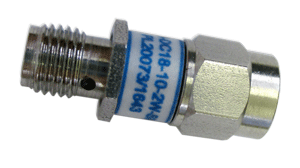

Quantic PMI Model PFA-DC18G-10-2W-SMF is a Fixed, Bidirectional Attenuator operating over the DC to 18 GHz frequency range that offers 10 ± 0.5 dB of attenuation with an input power of 2 W maximum. Package size is 0.86" x Ø0.312" with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): DC To 18
Frequency Min (GHz): DC
Frequency Max (GHz): 18
Attenuation Value (dB): 10 dB
Attenuation Accuracy (dB): ±0.5 dB
Impedance (Ohms): 50
VSWR: 1.35:1 Max - Measured 1.14:1
Input Power: 2 W Max
Connectors: SMA Male / Female
Size: 0.86" x Ø0.312",
21.84 mm x Ø7.92 mm
Environmental Ratings:
Temperature: -20 ºC to +85 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
