PFA-DC18-30dB-SMF Preliminary

Fixed Attenuator

Quantic PMI Model PFA-DC18-30dB-SMF is a 10 W fixed attenuator that operates over the frequency range of DC to 18 GHz and provides 30 dB of attenuation. Package size is 0.71" x Ø1.25" with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): DC to 18
Frequency Min (GHz): DC
Frequency Max (GHz): 18
Attenuation Value (dB): 30 dB
Impedance (Ohms): 50
VSWR: 1.25 Max (19.1 Min)
Input Power: 10 W
Deviation (±dB): DC to 4 GHz: ±0.5 dB
4 to 8 GHz: ±0.6 dB
8 to 12.4 GHz: ±0.7 dB
12.4 to 18 GHz: ±1 dB
Connectors: SMA Male / Female

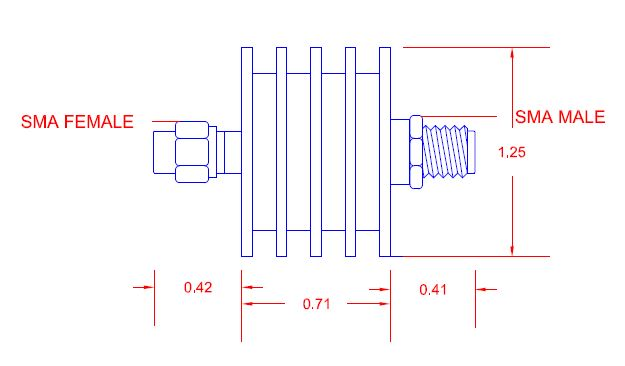

Size: 0.71" x Ø1.25"
Environmental Ratings:
Temperature: -55 °C to +125 °C
