PFA-DC18-20dB-SMF
Preliminary

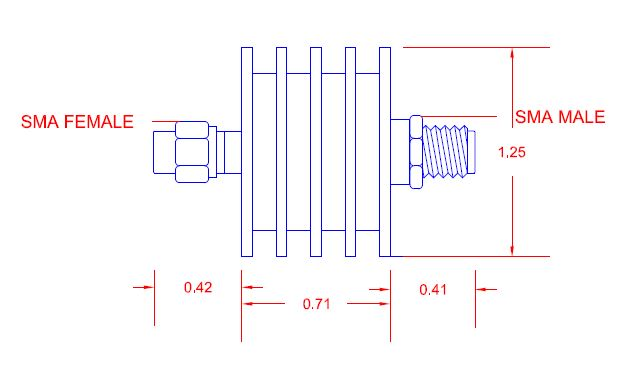

PMI model PFA-DC18-20dB-SMF is a 20dB fixed attenuator that operates over the frequency range of DC to 18.0 GHz and low CW input power.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | DC to 18.0 GHz |
|---|
| Frequency Min: | DC |
|---|
| Frequency Max: | 18.0 GHz |
|---|
| Impedance: | 50 OHMs |
|---|
| Attenuation Value: | 20 dB |
|---|
| VSWR: | 1.25 Max (19.1 Min) |
|---|
| Input Power: | 10 Watts |
|---|
| Deviation (+/-dB): | DC to 4 GHz = 0.5
4 to 8 GHz = 0.6
8 to 12.4 GHz = 0.7
12.4 to 18 GHz = 1.0 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55°C to +125°C |
|---|
