PEC4-18G22G-1R7-8-23-SFF
Preliminary

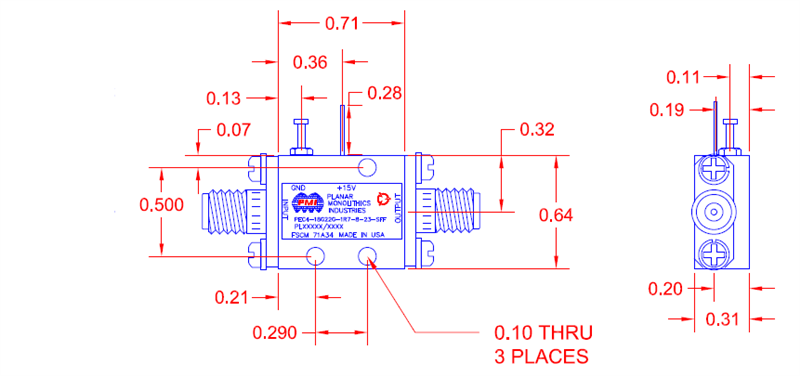

PMI Model No. PEC4-18G22G-1R7-8-23-SFF is a 18.0 to 22.0 GHz low noise amplifier with 23 dB gain. This amplifier is supplied in our standard PEC4 housing. This model provides the following performance.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Min: | 18 GHz |
|---|
| Frequency Max: | 22 GHz |
|---|
| Gain: | +23 dB min. |
|---|
| Gain Flatness: | ±1.5 dB max. |
|---|
| Noise Figure: | 1.7 dB max. |
|---|
| Frequency Range: | 18.0 to 22.0 GHz |
|---|
| Connectors: | SMA Female |
|---|
| Input VSWR: | 2.2:1 max. |
|---|
| Output VSWR: | 2.2:1 max. |
|---|
| OP1dB: | +8 dBm min. |
|---|
| RF Input Power: | +20 dBm CW |
|---|
| DC Voltage: | +15 V |
|---|
| DC Current Draw: | 120 mA nom. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +75 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +110 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
