PEC4-16-50M18G-4R0-19-15-SFF Active

Broadband Low Noise Amplifier

Product Feature

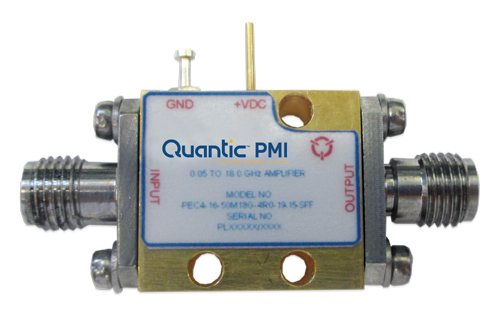

Quantic PMI Model PEC4-16-50M18G-4R0-19-15-SFF is a 0.05 to 18 GHz broadband low noise amplifier with a 14 to 19 dB gain, a noise figure of 4 dB, gain flatness of ±2 dB and an OP1dB of 19 dBm. This amplifier is supplied in our standard PEC4 housing that measures 0.71" x 0.64" x 0.31" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.05 to 18
Frequency Min (GHz): 0.05
Frequency Max (GHz): 18
Gain (dB): 14 dB Min,
19 dB Max
Gain (Measured): 14 dB Min, 19 dB Max. - Measured 14.6 dB
Gain Flatness: ±2 dB Max
Gain Flatness (Measured): ±2.0 dB Max - Measured 1.3 dB
Noise Figure (dB): 4 dB Typ
OP1dB (dBm): 19 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 1.43:1/ 1.50:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 200 mA Typ - Measured 159 mA
Input Power: 23 dBm CW
Connectors: SMA Female
Size: 0.71" x 0.64" x 0.31"
Finish: Gold Plated
Environmental Ratings:
Temperature: -40 ºC to +75 ºC Operating
-65 ºC to +110 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
