PEC3-9-7G18G-9-7-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model PEC3-9-7G18G-9-7-SFF is a 7 to 18 GHz low noise amplifier with a gain of 9±3 dB; noise figure of 9 dB; and a P1dB of 7 dBm. The unit is hermetically sealed in a housing that measures 1.92" x 0.78" x 0.34" with SMA Female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 7 to 18
Frequency Min (GHz): 7
Frequency Max (GHz): 18
Gain (dB): 9 ± 3 dB
Noise Figure (dB): 9 dB Max
OP1dB (dBm): 7 dBm Min
VSWR In/Out: 1.2:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 400 mA Max
OIP3: 15 dBm Min
Input Power Handling: 23 dBm Min
Connectors: SMA Female - removable

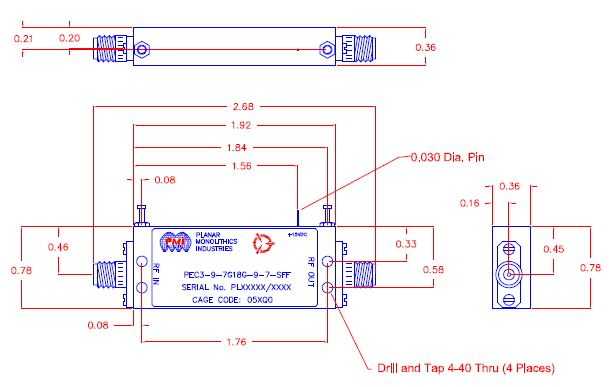

Size: 1.92" x 0.78" x 0.34"
Environmental Ratings:
Temperature (Operating): -40 °C to +70 °C
Temperature (Storage): -55 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
