PEC2-60-4G8G-1R75-14-12-SFF Active

Low Noise Amplifier

Product Feature

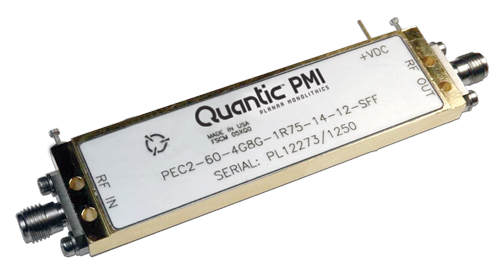

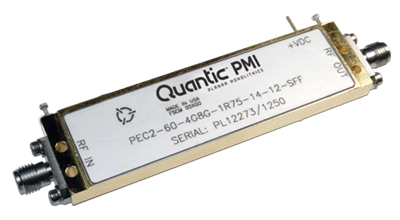

Quantic PMI Model PEC2-60-4G8G-1R75-14-12-SFF is a 4 to 8 GHz low noise amplifier that typically provides 60 dB of gain that offers a gain flatness is ±1.25 dB with a noise figure of 1.75 dB and a OP1dB of 14 dBm. Housing size is 2.98" x 0.78" x 0.26" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Gain (dB): 60 dB Typ
Gain Flatness (dB): ±1.25 dB Max
Noise Figure (dB): 1.75 dB Max
OP1dB (dBm): 14 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current Draw: 350 mA Nom
Connectors: SMA Female - removable
Size: 2.98" x 0.78" x 0.26"
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -54 ºC to +95 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
