PEC1-17-1575D42-1-15-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model PEC1-17-1575D42-1-15-SFF is a 1575.42 MHz Low Noise Amplifier that offers a minimum gain of 17 dB with ±1 dB of flatness, OP1dB of 17 dBm minimum, and a noise figure of 1 dB maximum. Package size is 1.0" x 1.0" 0.28" with removable SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 1.575
Frequency Min (GHz): 1.575
Frequency Max (GHz): 1.575
Gain (dB): 17 dB Min
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 0.8 dB goal,
1 dB Max
VSWR In/Out: 2.0:1
OP1dB (dBm): 17 dBm Min
RF Input Power: 30 dBm CW Typ,
50 dBm Peak, 1 µs PW, 1% DC
DC Voltage: +12 to +15 VDC
DC Current Draw: 125 mA Max
Connectors: SMA Female - removable

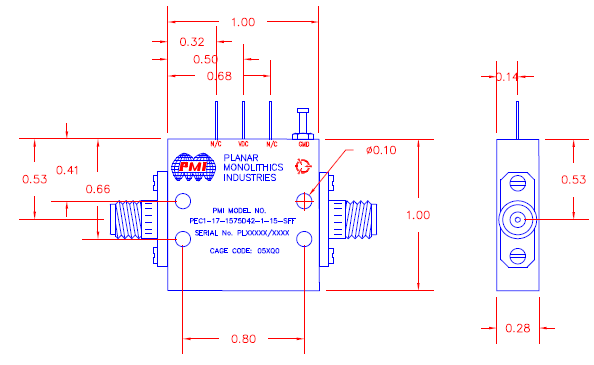

Size: 1.00" x 1.00" x 0.28" (Excluding Connectors)
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -40 ºC to +75 ºC
Temperature (Non-Operating): -55 ºC to 100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
