PEC-7R720R3-15-SFF-SA Active

Switch Bit Attenuator

Buy Now
PEC-7R720R3-15-SFF-SA
Product Feature

Quantic PMI Model PEC-7R720R3-15-SFF-SA is a 7.7 to 20.3 GHz switched bit attenuator offering 2 or 4 dB attenuation with 4 dB of insertion loss and a VSWR of <1.7:1.  Housing measures 1.5" x 0.75" x 0.5" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 7.7 to 20.3
Frequency Min (GHz): 7.7
Frequency Max (GHz): 20.3
Attenuation Range (dB): 2 and 4 dB
Attenuation Flatness (dB): ±0.5 dB
Insertion Loss (dB): 4 dB Max in 0 dB state
VSWR: <1.7:1 Max
Input 1dB Compression: 19 dBm
Power Supply: +15 ± 0.5 VDC @ <100 mA
TTL Control: TTL Compatible Truth Table
Connectors: SMA Female - removable

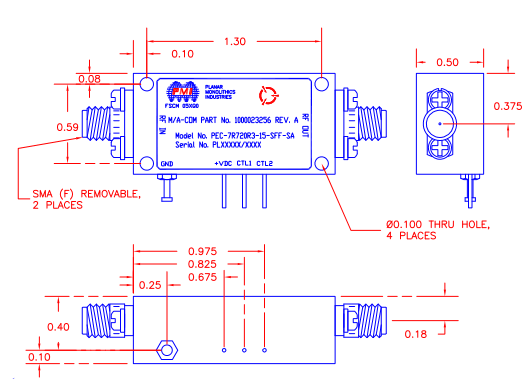

Size: 1.50" x 0.75" x 0.50"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
