PEC-60-160M-40M-7-13-1515-SFFF Active

Linear IF Gain Control Amplifier with Detected Video Output

Buy Now
PEC-60-160M-40M-7-13-1515-SFFF
Product Feature

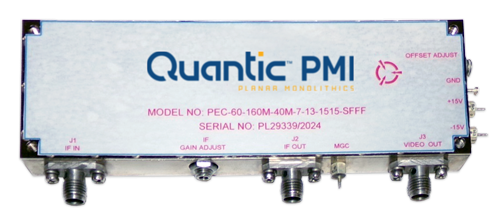

Quantic PMI PEC-60-160M-40M-7-13-1515-SFFF is a Linear IF Gain Control Amplifier with Detected Video Output that operates over the 140 to 180 MHz frequency range and provides an output power of 13 dBm with a noise figure of 7 dB and a linearity of ±1 dB. IF OUT Gain is adjustable, 60 dB minimum and OFFSET adjust control.  Package size is 4.62" x 1.50" x 0.47" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.14 to 0.18
Frequency Min (GHz): 0.14
Frequency Max (GHz): 0.18
IF Input Bandwidth: 0.04 GHz Nom
Input VSWR: 1.5:1 Max
Output VSWR: 1.5:1 Max
Noise Figure (dB): 7 dB Max
Output Power: 13 dBm Min
DC Voltage Supply (VDC): +15 VDC
-15 VDC
DC Current Draw: 33 mA, 40 mA
IF Input Impedance: 50 Ohm Nom
Linearity: ±1 dB Max
IF Output Gain: 60 dB Min
IF Output @ 1 dB GCP: 13 dBm Min
IF Output Impedance: 50 Ohm Nom
Video Output Gain: 70 dB Min
Video Output Level: +5 VDC Min
Video Output Dynamic Range: 26 dB Min
Video Output Impedance: 93 Ohm
Video Output Rise Time: 30 ns Max
Gain Control: 60 dB Min
Gain Control Voltage: 0 to -5 V
0 V: Max Gain
-5 V: Min Gain
Offset: Adjustable
Power Supply: ±15 VDC
Connectors: SMA Female
Size: 4.90" x 20" x 0.50"
Weight: ~115 g
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 °C to +85 °C
Temperature (Non-Operating): -55 °C to +85 °C
Humidity: 95% RH Max (+85 °C)
Shock: MIL-E-5400R, 3.2.24.6.1
Vibration: MIL-E-5400R, 3.2.24.5
Figure 2, Curve III
Altitude: 0 to 4, 572 m
