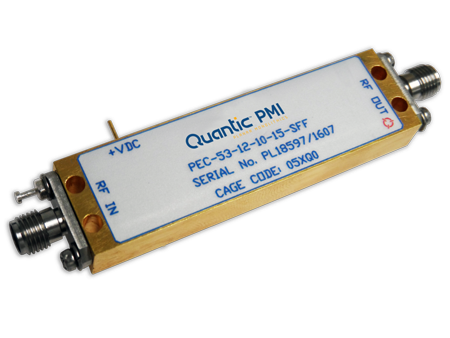

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 1 GHz |
|---|
| Frequency Max: | 2 GHz |
|---|
| Gain: | 53 dB min |
|---|
| Gain (Measured): | 53 dB min - measured 56 dB |
|---|
| Gain Flatness: | ±0.75 dB max - measured ±0.69 dB |
|---|
| Gain Flatness (Measured): | ±0.75 dB max - measured ±0.69 dB |
|---|
| Noise Figure: | 0.7 dB typical - measured 0.80 dB |
|---|
| Frequency Range: | 1.0 to 2.0 GHz |
|---|
| Connectors: | SMA (F) |
|---|
| Finish: | Painted Blue (Mounting Surface Unpainted) |
|---|
| VSWR In/Out: | 1.5:1 max - measured 1.48:1 (Input), 1.24:1 (Output) |
|---|
| OP1dB: | +16 dBm min - measured +17.8 dBm |
|---|
| DC Voltage: | +12 to +15 VDC nominal |
|---|
| DC Current Draw: | 450 mA max - measured 253 mA |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
