PEC-50-500M40G-20-12-292FF-BG-OPT250M Active

Low Noise Amplifier

3D Model

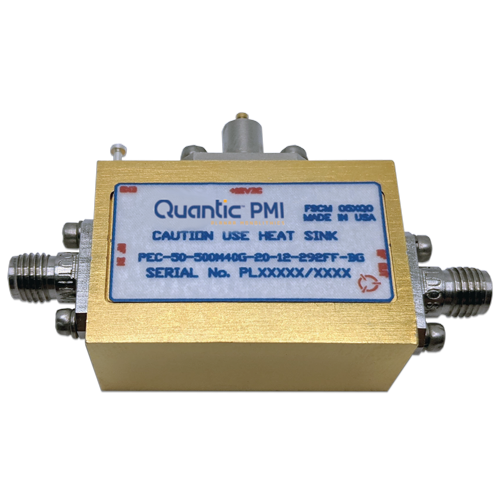

Quantic PMI Model PEC-50-500M40G-20-12-292FF-BG-OPT250M is a 250 MHz to 40 GHz Low Noise Amplifier that has a typical gain of 47 dB while maintaining a ±2.5 dB flatness. This small package measures 1.37" x 1.00" x 0.60" and has 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.25 to 40
Frequency Min (GHz): 0.25
Frequency Max (GHz): 40
Gain (dB): 47 dB Nom
Minimum Gain: 45 dB Min
Gain Flatness: ±2.5 dB Max (+25°C to +85°C),
±3 dB Max (-55°C to +25°C)
Noise Figure (dB): 5.5 dB Typ, 7 dB Max
OP1dB (dBm): 21 dBm Min (0.25 to 10 GHz),
19 dBm Min (10 to 18 GHz),
16 dBm Min (18 to 40 GHz)
Psat (dBm): 27 dBm Max
VSWR In/Out: 2.0:1 / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 650 mA Max (Iq)
Input Power Handling: 23 dBm (0.25 to 26 GHz),
20 dBm (26 to 40 GHz) Absolute Max
Connectors: 2.92mm Female
Size: 1.37" x 1.00" x 0.60"
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +117 °C (Storage)
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
