PEC-50-0R118-6R5-18-SFF-DVA Active

Voltage Variable Gain Amplifier

Product Feature

Quantic PMI Model PEC-50-0R118-6R5-18-SFF-DVA is a variable gain amplifier that operates over the frequency range 0.1 to 18 GHz that provides a gain of up to 50 dB with a gain flatness of ±2 dB and a noise figure of  6.5 dB with an OP1dB of 14 dBm.  Housing size is 3.5" x 2.11" x 0.88" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Gain (dB): 50 dB Min
Gain Flatness (dB): ±2 dB Typ
Noise Figure (dB): 6.5 dB Typ
OP1dB (dBm): 14 dBm Typ
VSWR In/Out: 2:1 typ.
DC Voltage Supply (VDC): +12 to -12 VDC
Attenuation Range: 60 dB
Attenuation Control: 14 Bit Serial
Connectors: SMA Female - removable

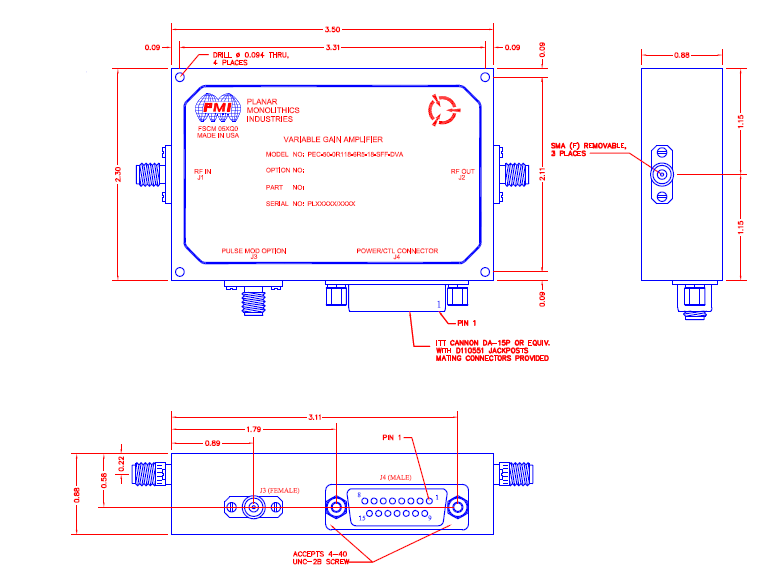

Size: 3.50" x 2.30" x 0.88"
Finish: Gold Plated
Environmental Ratings:
Temperature: -20 °C to +70 °C (Operating)
-65 °C to +125 °C (Non-Operating)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
