PEC-4G8G-12-16V-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model PEC-4G8G-12-16V-SFF is a 4 to 8 GHz Low Noise Amplifier with a gain of 40 dB and a gain flatness of ±1.2 dB and a noise figure of 0.8 dB. This amplifier is supplied with SMA connectors in a housing that measures 1.5" x 1.0" 0.4".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Gain (dB): 40 dB Typ, 43 dB Max
Gain Flatness: ±1.2 dB Typ, ±1.5 dB Max
Noise Figure (dB): 0.8 dB Typ, 0.95 dB Max
OP1dB (dBm): 12 dBm Typ, 15 dBm Min
Psat (dBm): 16 dBm Typ
DC Voltage (VDC): +10 to +16 VDC
DC Current (mA): 100 mA Typ / 150 mA Max
Input Power: 5 dBm
Reverse Isolation: 55 dB Min
Maximum Input Power: 1.6:1 Typ, 2.0:1 Max
P1dB Compression Point: 12 dBm Typ, 15 dBm Min
OIP3: 27 dBm Typ
Connectors: SMA Female

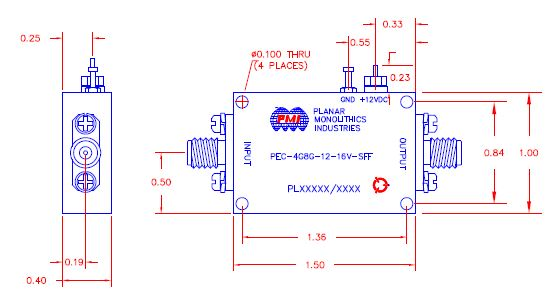

Size: 1.5" x 1.0" 0.4"
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -55 °C to +125 °C
Humidity: MIL-STD-202F, METHOD 103B COND B
Shock: MIL-STD-202F, METHOD 213B COND B
Altitude: MIL-STD-202F, METHOD 105C COND B
Temperature Cycle: MIL-STD-202F, METHOD 1070 COND A
