PEC-42-500M40G-20-12-292FF-BG Active

Ultra-Wideband Low Noise Amplifier

Buy Now
Product Feature
Additional Documents

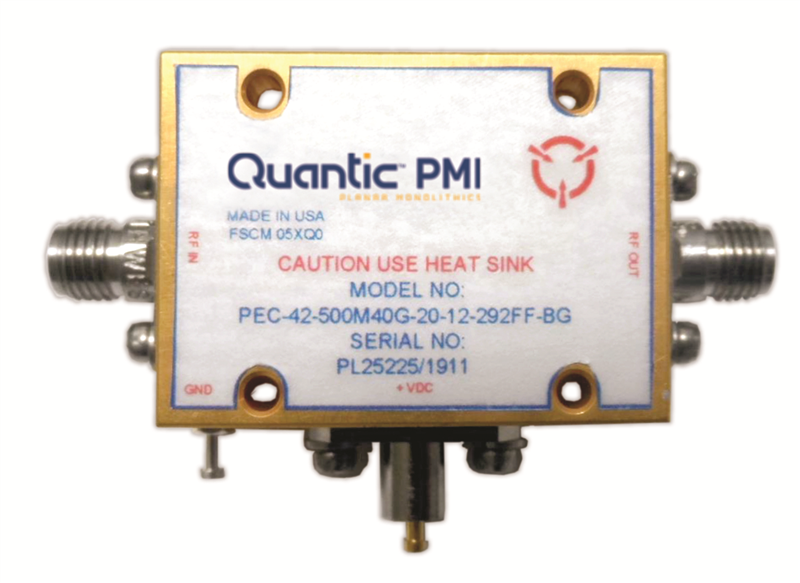

Quantic PMI Amplifier Model PEC-42-500M40G-20-12-292FF-BG is a 0.5 to 40 GHz Ultra-Wideband Low Noise Amplifier that provides a typical gain of 42 dB, while maintaining a ±2.5 dB flatness. This small 1.37" x 1.0" x 0.6" package is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Gain (dB): 40 dB Typ
36 dB Min
Gain Flatness: ±2.5 dB Typ
Noise Figure (dB): 5.5 dB Typ (Up to 26.5 GHz)
OP1dB (dBm): 19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ
Psat (dBm): 23 dBm (1 to18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
VSWR In/Out: 2.0:1 / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 450 mA Nom
Input Power: 17 dBm CW Max
Connectors: 2.92mm (F)
Size: 1.37" x 1.0" x 0.6"
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +117 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
