PEC-42-1G40G-20-12-292FF-BT Active

Low Noise Amplifier

Product Feature

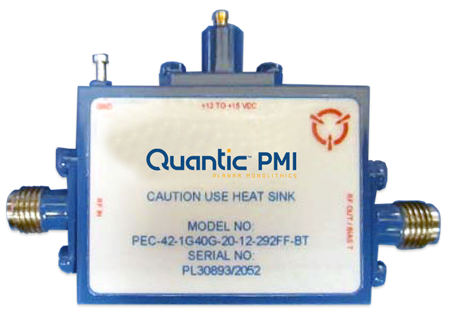

Quantic PMI Model PEC-42-1G40G-20-12-292FF-BT is a 1 to 40 GHz Low Noise Amplifier that has a typical gain of 40 dB while maintaining a ±2.5 dB flatness with a Psat of 20 dBm @ 40 GHz. Bias can be applied via the output RF connector or DC pin and comes in a small 1.37" x 1.0" x 0.6" package outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 40
Frequency Min (GHz): 1
Frequency Max (GHz): 40
Gain (dB): 40 dB Typ
Gain Flatness: ±2.5 dB
Noise Figure (dB): 5.5 dB Typ
OP1dB (dBm): 19 dBm Typ (1 to 18 GHz),
17 dBm Typ (18 to 40 GHz)
Psat (dBm): 23 dBm Typ (1 to 18 GHz),
20 dBm Typ (18 to 40 GHz)
VSWR In/Out: 2.0:1 / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 550 mA Nom
Input Power: 17 dBm CW Max
Connectors: 2.92mm Female
Size: 1.37" x 1.00" x 0.60"
Finish: Painted Blue and Mounting Surface Free of Paint (Gold Plated)
Output Power: 19 dBm Typ (1 to 18 GHz)
17 dBm Typ (18 to 40 GHz)
Sealing: Hard Conductive Epoxy Seal Standard
Hermetic Seal upon Request
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +117 °C (Storage)
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
