PEC-36-2G18G-4R5-27-15-SFF-OPT812 Preliminary

Medium Power, Low Noise Amplifier

Product Feature

Quantic PMI Model PEC-36-2G18G-4R5-27-15-SFF-OPT812 is an 8 to 12.4 GHz, Medium Power, Low Noise Amplifier offering 36 dB gain and an OP1dB of +27 dBm with a low noise figure of 4.5 dB. This amplifier is supplied in a housing measuring 1.0" x 0.63" x 0.25" with SMA (F) connectors and operates on a single +15 VDC supply.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 12.4
Frequency Min (GHz): 8
Frequency Max (GHz): 12.4
Gain (dB): 36 dB Typ
Gain Flatness: ±1.5 dB Typ
Noise Figure (dB): 4.5 dB Typ,
5 dB Max
OP1dB (dBm): 26.5 dBm Min,
27.5 dBm Typ
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 VDC
DC Current (mA): 850 mA Nom
Input Power: 20 dBm CW Max
Connectors: SMA Female - removable

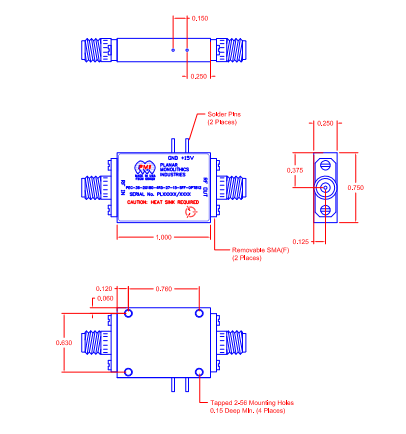

Size: 1.0" x 0.63" x 0.25"
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
