PEC-36-2G18G-4R5-27-15-SFF Active

Medium Power Low Noise Amplifier

Buy Now
PEC-36-2G18G-4R5-27-15-SFF
Product Feature
Additional Documents

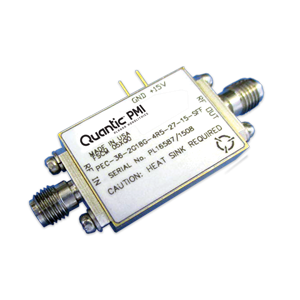

Quantic PMI Model PEC-36-2G18G-4R5-27-15-SFF is a 2 to 18 GHz, Medium Power, Low Noise Amplifier offering 36 dB gain and an OP1dB of 27 dBm with a low noise figure of 4.5 dB. This amplifier is supplied in a housing measuring 1.0" x 0.63" x 0.25" with SMA (F) connectors and operates on a single +15 VDC supply.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 36 dB Typ
Psat: 1W Typ (30 dBm)
Input Power: 20 dBm CW Max
VSWR: 2.0:1 Max
Noise Figure: 4.5 dB Typ
5.0 dB Max
Gain Flatness: ±1.5 dB Typ
Current Supply: 850 mA Nom
OP1dB: 26.5 dBm Min,
27.5 dBm Typ
DC Supply Voltage: +15 VDC
RF Connectors In/Out: SMA Female
Finish: Gold Plated
Weight: ~10 g
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, METHOD 204D, COND. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
