PEC-36-18G40G-15-12-292FF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model PEC-36-18G40G-15-12-292FF is an 18 to 40 GHz low noise amplifier that has a nominal gain of 36 dB while maintaining a ±2.0 dB flatness. Small package measures 0.126" x 0.91" x 0.39" with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 18 to 40
Frequency Min (GHz): 18
Frequency Max (GHz): 40
Gain (dB): 32 dB Min, 45 dB Max
Noise Figure (dB): 8 dB Max
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.0:1 / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 500 mA Max
Input Power Handling: 17 dBm CW Max
Connectors: 2.92mm Female

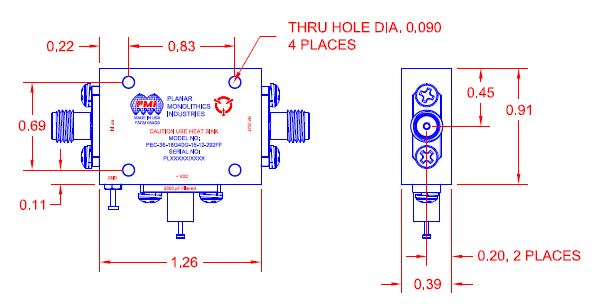

Size: 0.126" x 0.91" x 0.39"
32mm x 23mm x 10mm
Finish: Gold Plated
DC Supply: +12 to +15 VDC @ 500mA Max
Environmental Ratings:
Temperature (Operating): -40 °C to +50 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
