PEC-30-8G12G-6R0-28-15-SFF Active

Broadband Amplifier

Product Feature

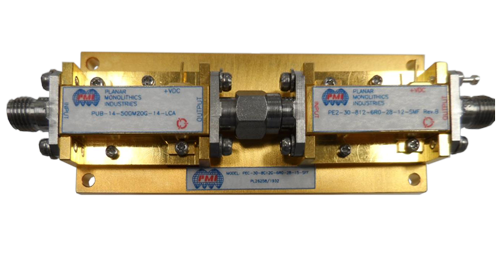

Quantic PMI Model PEC-30-8G12G-6R0-28-15-SFF is an amplifier that operates from 8 to 18 GHz offering a minimum of 30 dB of gain and a maximum noise figure of 6 dB. Housing is gold plated and measures 2.8" x 0.9" x 0.29" and supplied with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 12
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Gain (dB): 30 dB Min
Gain Flatness: ±1.5 dB max
Noise Figure (dB): 6 dB Max
OP1dB (dBm): 23 dBm Min,
25 dBm Typ
VSWR In/Out: 2.0:1 Max, 2.2:1 Max, 2.0:1 Typ
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 450 mA
Connectors: SMA Female - removable
Size: 2.8" x 0.9" x 0.29"
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Storage
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
