PEC-30-800M3G-2R5-15-12-SFF Preliminary

Low Noise Amplifier

PEC-30-800M3G-2R5-15-12-SFF
Product Feature

Quantic PMI Model PEC-30-800M3G-2R5-15-12-SFF is a 0.8 to 3 GHz low noise amplifier that has a gain of 30 dB and a noise figure of 2.5 dB with a OP1dB is 15 dB minimum and the OIP3 is 30 dBm minimum.  Package size is 2.68" x 0.78" x 0.36" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.8 to 3
Frequency Min (GHz): 0.8
Frequency Max (GHz): 3
Gain (dB): 25 dB Min
Gain Flatness (dB): ±3 dB Max
Noise Figure (dB): 2.25 dB Typ,
2.5 dB Max
VSWR In/Out: 2:1 / 2.0:1 Typ
OP1dB (dBm): 15 dBm Min
OIP3: 15 dBm Min
RF Input Power: 17 dBm CW Max
DC Voltage: +15 VDC
DC Current Draw: 200 mA Nom
Connectors: SMA Female - removable

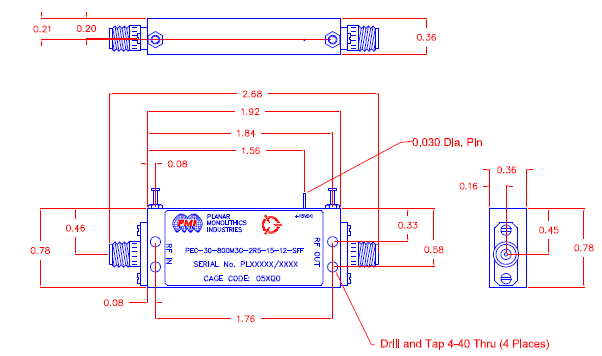

Size: 2.68" x 0.78" x 0.36"
Finish: Painted Blue/Bottom Gold Plated (Unpainted)
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to 85 ºC
Temperature (Non-Operating): -65 ºC to +117 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
