PEC-30-500M40G-20-12-292FF-QB Preliminary

Low Noise Amplifier

Product Feature

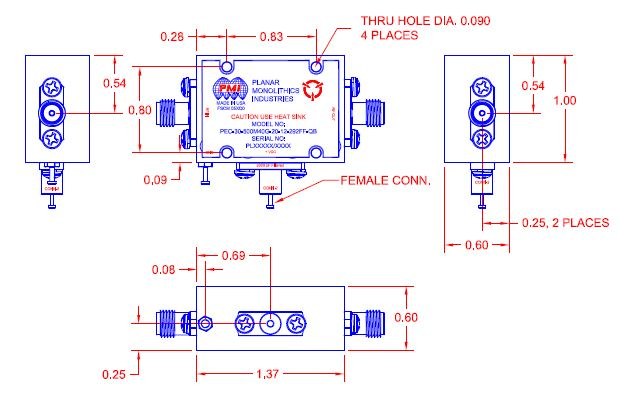

Quantic PMI Model PEC-30-500M40G-20-12-292FF-QB is a 0.5 to 40 GHz low noise amplifier that has a typical gain of 30 dB while maintaining a ±2.5 dB flatness. This small 1.37" x 1.0" x 0.6" package is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Gain (dB): 35 dB (0.5 to 20 GHz),
30 dB (20 to 40 GHz)
Gain Flatness: ±2.5 dB Typ
Noise Figure (dB): 5.5 dB Typ (Up to 26.5 GHz)
OP1dB (dBm): 20 dBm Typ (1 to 18 GHz),
15 dBm Typ (18 to 40 GHz)
Psat (dBm): 23 dBm Typ (1 to 18 GHz),
18 dBm Typ (18 to 40 GHz)
VSWR In/Out: 2.0:1 / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 450 mA Nom
Input Power Handling: 17 dBm CW Max
Connectors: 2.92mm Female
Finish: Gold Plated
DC Supply: +12 to +15 VDC @ 450 mA Nom
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +85 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
