PEC-30-500M40G-20-12-292FF-OPT250M Active

LNA - 250 MHz to 40 GHz / 25 dB Gain

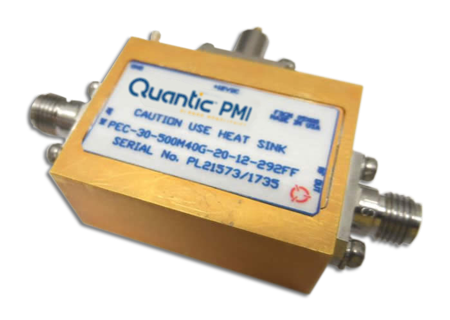

Quantic PMI Model PEC-30-500M40G-20-12-292FF-OPT250M is a 0.25 to 40 GHz Low Noise Amplifier. This amplifier has a typical gain of 25 dB with ±2 dB flatness; a noise figure of 5.5 dB, an OP1dB of 19 dBm, a Psat of 23 dBm, an input power handling of 17 dBm, and a VSWR of 2.0:1. This unit has 2.92mm female connectors and is 1.37" x 1.0" x 0.6".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.25 to 40
Frequency Min (GHz): 0.25
Frequency Max (GHz): 40
Gain (dB): 25 dB Nom
Gain (Measured): 25 dB Typ - Measured 22.3 dB Min, 26.5 dB Max
Gain Flatness: ±2 dB Max (+25°C to +85°C),
±3 dB Max (-55°C to +25°C)
Noise Figure (dB): 5.5 dB Typ (Up to 26.5 GHz),
7 dB Max (up to 40 GHz)
OP1dB (dBm): 18 dBm Min (0.25 to 10 GHz),
17 dBm Min (10 to 18 GHz),
15 dBm Min (18 to 40 GHz)
Psat (dBm): 25 dBm Max (0.25 to 18 GHz),
22 dBm Max (18 to 40 GHz)
VSWR In/Out: 2.0:1 / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 400 mA Max (Iq)
Input Power: 23 dBm (0.25 to 26 GHz)
20 dBm (26 to 40 GHz) Absolute Max
Connectors: 2.92mm Female - removable
Size: 1.37" x 1.0" x 0.6"
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +117 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
