PEC-30-218-5-25-15-SFF-QB Active

Broadband Amplifier

Buy Now
PEC-30-218-5-25-15-SFF-QB
Product Feature

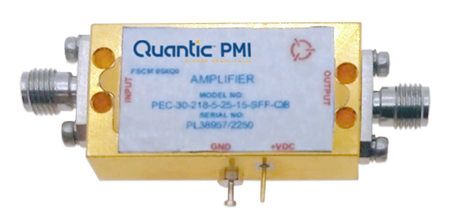

Quantic PMI Model PEC-30-218-5-25-15-SFF-QB is a broadband amplifier that operates over the 2 to 18 GHz frequency range with a maximum gain of +32 dB; typical 3 dB noise figure; gain flatness is ±2.0 dB; OP1dB of +23 dBm; and an input/output 2.0:1 maximum VSWR.  Package size is 1.45" x 0.76" x 0.35" and is gold plated with removable SMA connectors in and out.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 26 dB Min,
32 dB Max
Gain Flatness: ±2.0 dB Max
Noise Figure (dB): 5 dB Max,
3 dB Typ
OP1dB (dBm): 23 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 to +15.5 VDC
DC Current (mA): 450 mA Typ
IP3: 33 dBm
Max Input Power: 20 dBm Max
Connectors: SMA (F) Removeable
Size: 1.45" x 0.76" x 0.35"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 °C to +85 °C
Temperature (Storage): -55 °C to +95 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
