PEC-30-0R118-5R0-20-12-SFF Preliminary

Low Noise Amplifier

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PE2_XX_XXXXXX_XX_XX_12_SFF_61914153_800.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PE2_XX_XXXXXX_XX_XX_12_SFF_61914153_800.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Capture_76708090_800.JPG
Product Feature

Quantic PMI Model PEC-30-0R118-5R0-20-12-SFF is a 0.1 to 18 GHz low noise amplifier that offers a gain of 25 to 32 dB and a gain flatness of ±1 dB with a noise figure of 5 dB @ 18 GHz.  The unit is supplied in a standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.1 to 18
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Gain (dB): 25 dB Min, 32 dB Max
Gain Flatness: ±1 dB Max (any 0.5 GHz BW)
Noise Figure (dB): 5 dB Max (1 to 18 GHz),
6 dB Max (0.5 to 1 GHz),
8 dB Max (0.1 to 0.5 GHz)
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 1.5:1 Typ, 2.0:1 Max
DC Voltage (VDC): +12 VDC
DC Current (mA): 400 mA
OIP2: 40 dBm Min
OIP3: 32 dBm Min
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.26"

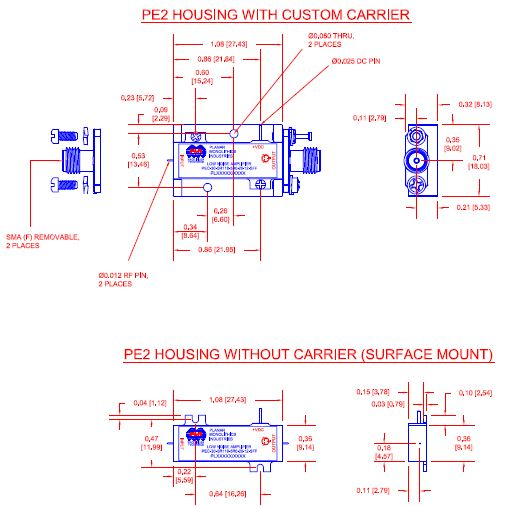

Housing: PE2
Finish: Gold Plated
Input Survival Power: 23 dBm Max
DC Supply: +12 VDC @ 400 mA (4.8 W Max)
EMI/EMC Performance: MIL-STD-461-F
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -60 °C to +125 °C
Humidity: Shall operate as specified when subjected to the humidity requirements of RTCA/DO-160F, Section 6, Category B, Severe Humidity Envirnonment
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: 10 Hz: 0.03 g^2/Hz
138 Hz: 0.0 g^2/Hz
175 Hz: 0.1 g^2/Hz
300 Hz: 0.1 g^2/Hz
447 Hz: 0.02 g^2/Hz
2000 Hz: 0.005 g^2/Hz
Altitude: Shall operate in an altitude/pressure environment of 0 to 50, 000 feet
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
